Geosun's Wishes and Aspirations: Make the LiDAR/SLAM Solution More Applicable and Affordable
5 Years
| Ask Lasest Price | |
| Brand Name : | Geosun |
| Model Number : | GS-130X LiDAR Scanning System |
| Certification : | CE, ISO |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 30 SETS/Month |
| Delivery Time : | 5-7 works days |
Mobile LiDAR Mapping 3D Spatial Data Collecting 905nm HESAI Laser Sensor
Geosun gAirHawk Series Mobile LiDAR Scanning System GS-130X
gAirHawk GS-130X is a kind of short range, compact LiDAR point cloud data acquisition system, integrated HESAI XT 32 Channel laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.
Specficaiton of Geosun gAirHawk Series Mobile LiDAR Scanning System GS-130X
gAirHawk Mobile LiDAR GS-130X | ||
Item Name | System Parameters | |
Parameters | Weight | 1.26 kg |
Measuring accuracy | Less than 0.1m @120m | |
Working temperature | -20℃~+65℃ | |
Power range | 12 V- 24 V | |
Consumption | 10 W | |
Carrying Platform | Vehicle and Drone | |
Storage | 64 GB storage, maximum support 128GB TF card | |
Lidar Unit | Measuring Range | 0.3m-120m@10% Reflectivity |
Laser class | 905nm Class1 (IEC 60825-1:2014) | |
Channel | 32-Channel | |
Range accuracy | ±1cm (typical Value) | |
Scanning frequency | 10HZ, 20HZ | |
data | Double echo 640,000 Points/Sec | |
FOV | 360°, adjustable | |
Laser sensor | HESAI XT32 | |
POS Unit | Update frequency | 200HZ |
Heading accuracy | 0.040° | |
Pitch accuracy | 0.015° | |
Rolling accuracy | 0.015° | |
Position accuracy | ≤0.05m | |
GNSS signal type | GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b | |
Pre-processing software | POS software | Output information: position, speed, attitude |
Point cloud software | Output point cloud data format: LAS format, custom TXT format | |
Camera (built-in) | FOV | 83 degree |
Effective Pixel | 26 Mega Pixel | |
| Focal length(mm) | 16 | |
Application of Geosun gAirHawk Series Mobile LiDAR Scanning System GS-130X

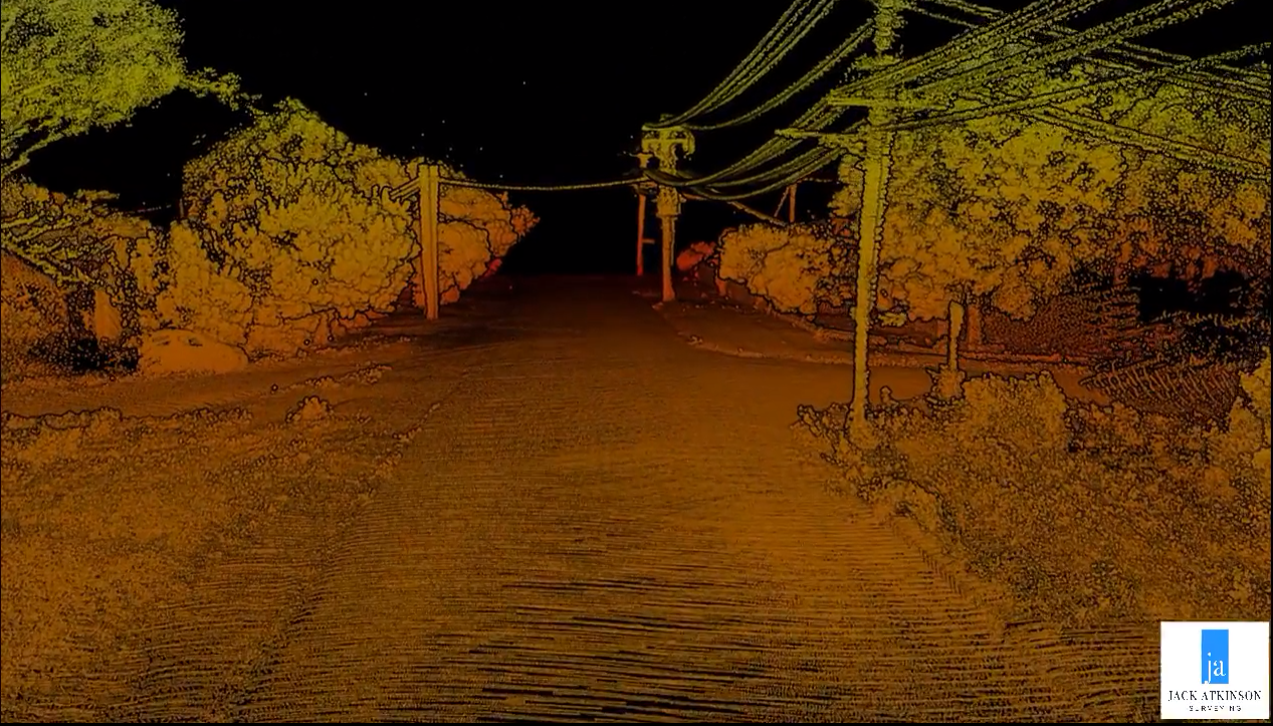

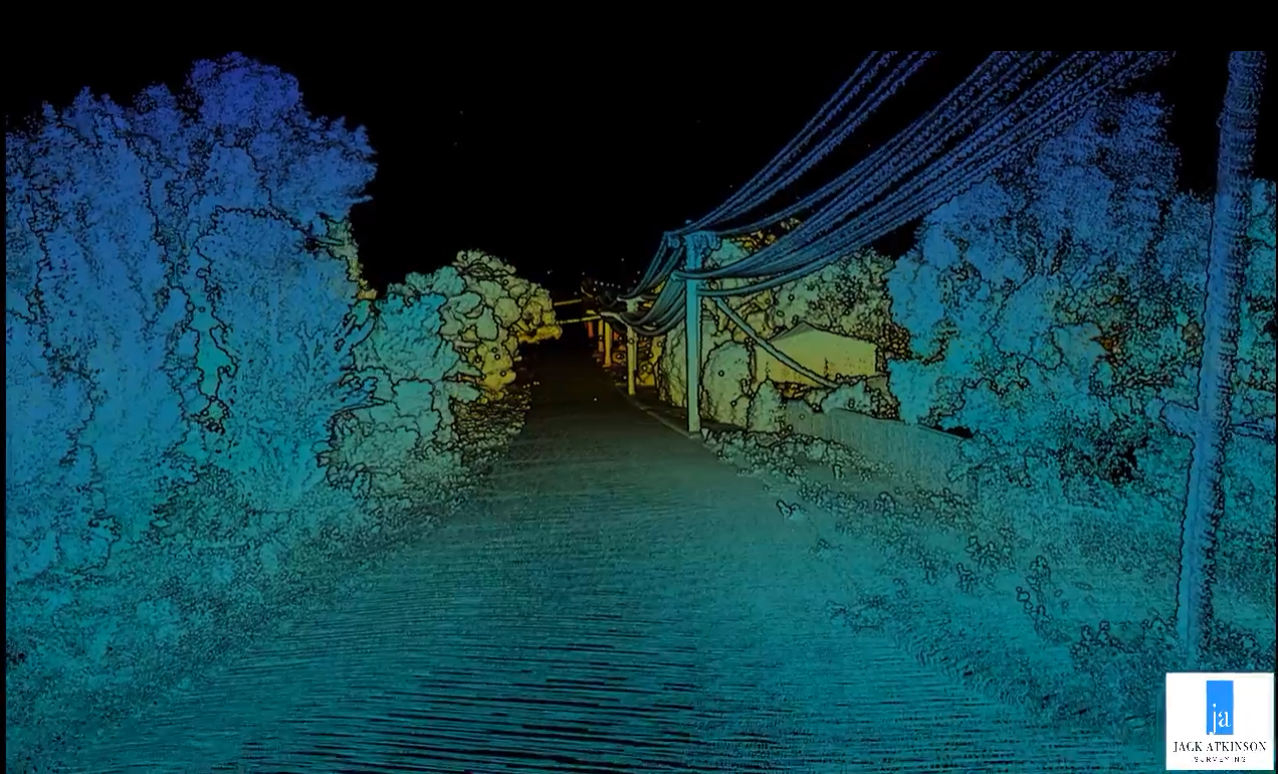

Thanks to Jack Atkinson Surveying. We've got another set of fascinating data to share. It is collected by the GS-130X Mobile LiDAR solution and is full of details to see.
Free Trial Software of Geosun gAirHawk Series Mobile LiDAR Scanning System GS-130X
Free trial test, achieve high precision
The Guideline of LiDAR Usage and Reference.pdf
Point Cloud Pre-Processing Software Integrated With Trajectory
Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation
Package of Geosun gAirHawk Series Mobile LiDAR Scanning System GS-130X
Geosun gAirHawk Series Mobile LiDAR Scanning System GS-130X is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
|
|
