    2.1kg 20W HESAI Pandar 40P airborne 3D Mapping Drone LiDAR Geosun GS-260F RTK Model

    2.1kg 20W HESAI Pandar 40P airborne 3D Mapping Drone LiDAR Geosun GS-260F


    Geosun gAirHawk Series GS-260F Drone LiDAR Scanning System

    gAirHawk GS-260F is a kind of Mid-range, compact LiDAR point cloud data acquisition system, integrated HESAI Pandar 40P laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.


    Specification of gAirHawk Series GS-260F Drone LiDAR Scanning System

    gAirHawk GS-260F gAirHawk Series GS-260F Drone LiDAR Scanning System


    Item Name

    System Parameters


    GS-260F

    Parameters

    Weight

    2.1 kg

    Measuring accuracy

    Less than 0.1m/0.05m(@150m)

    Working temperature

    -20℃~+60℃

    Power range

    12 V- 24 V

    Consumption

    20 W

    Carrying Platform

    GS-800 Multi Rotor, DJI M300, DJI M600 Pro

    Storage

    64 GB storage, maximum support 128GB TF card

    Lidar Unit


    Measuring Range

    0.3m-200m@20% Reflectivity

    Laser class

    905nm Class1 (IEC 60825-1:2014)

    Laser line number

    40-Channel

    Max. range

    200 m

    Mix. range

    0.3 m

    Range accuracy

    ±5cm (@0.3m~5m), ±2cm (@0.5m~200m)

    Scanning frequency

    10HZ, 20HZ

    data

    Double echo 720,000 Points/Sec

    FOV

    360°, adjustable

    Laser sensor

    HESAI Pandar 40P

    POS Unit

    Update frequency

    200HZ

    Heading accuracy

    0.017°

    Pitch accuracy

    0.005°

    Rolling accuracy

    0.005°

    Position accuracy

    ≤0.05m

    GNSS signal type

    GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

    Pre-processing software

    POS software

    Output information: position, speed, attitude

    Point cloud software

    Output point cloud data format: LAS format, custom TXT format

    Camera

    FOV

    83 Degree

    Effective Pixel

    26 Mega Pixel

    Trigger event

    Distance or Time trigger

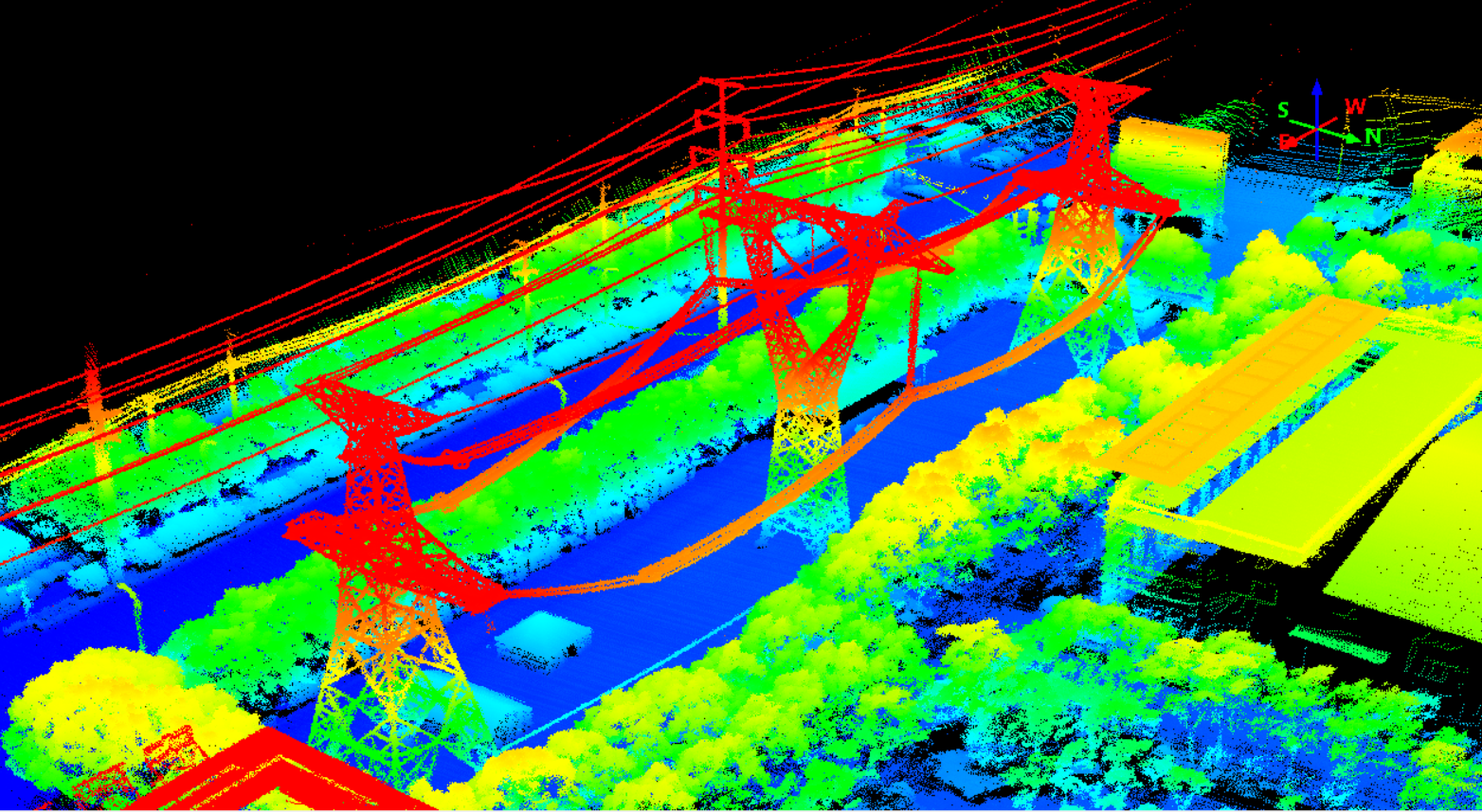

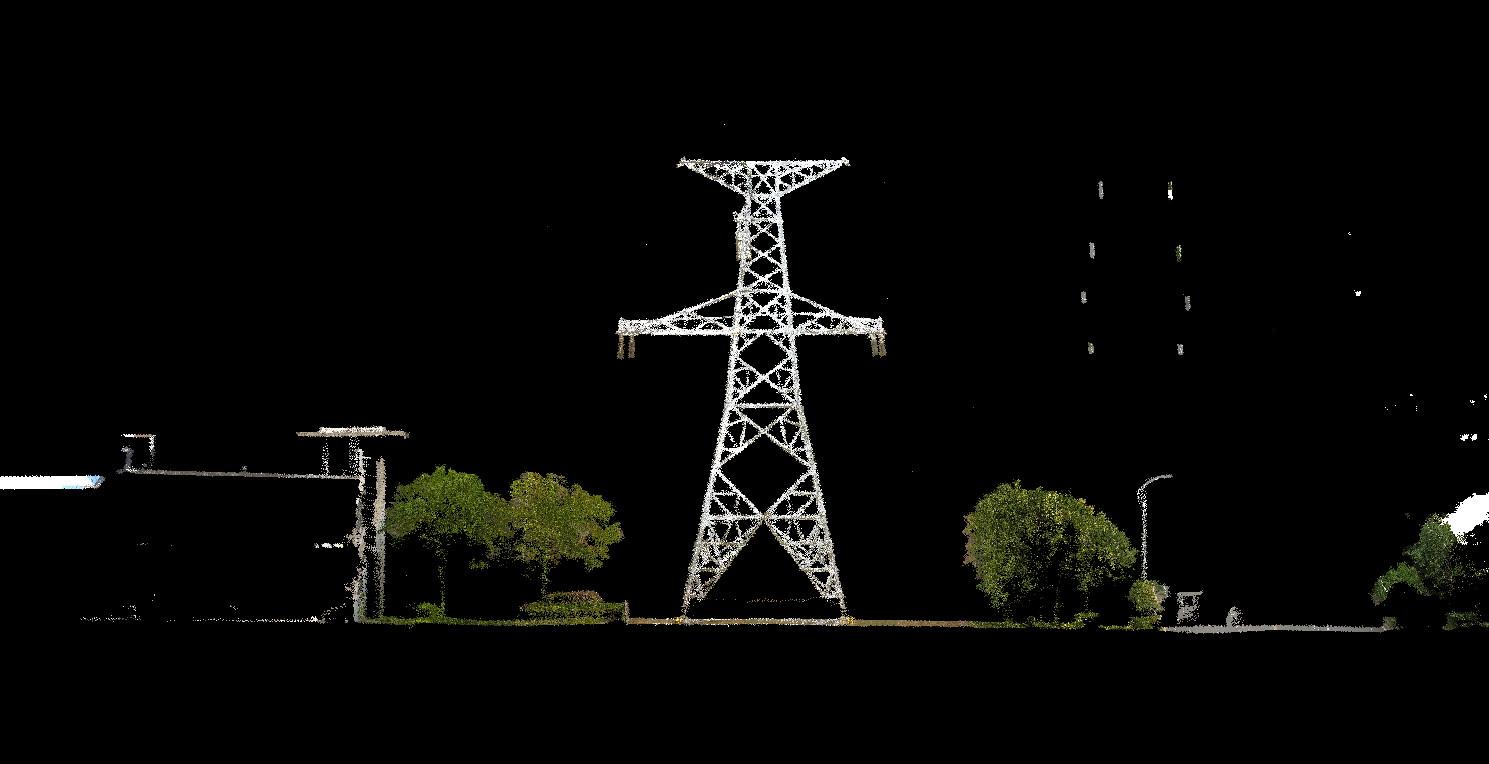

    Application of GS-260F Drone LiDAR Scanning System(RTK model)


    Package of GS-260F Drone LiDAR Scanning System

    Drone LiDAR Scanning System is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
