    Mapping Surveying 3400mm Wheelbase VTOL Fixed Wing LiDAR Drone

    Ask Lasest Price
    Brand Name : Geosun
    Model Number : GS-S300
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 SETS/MONTH
    Delivery Time : 15-20
    • Product Details
    • Company Profile

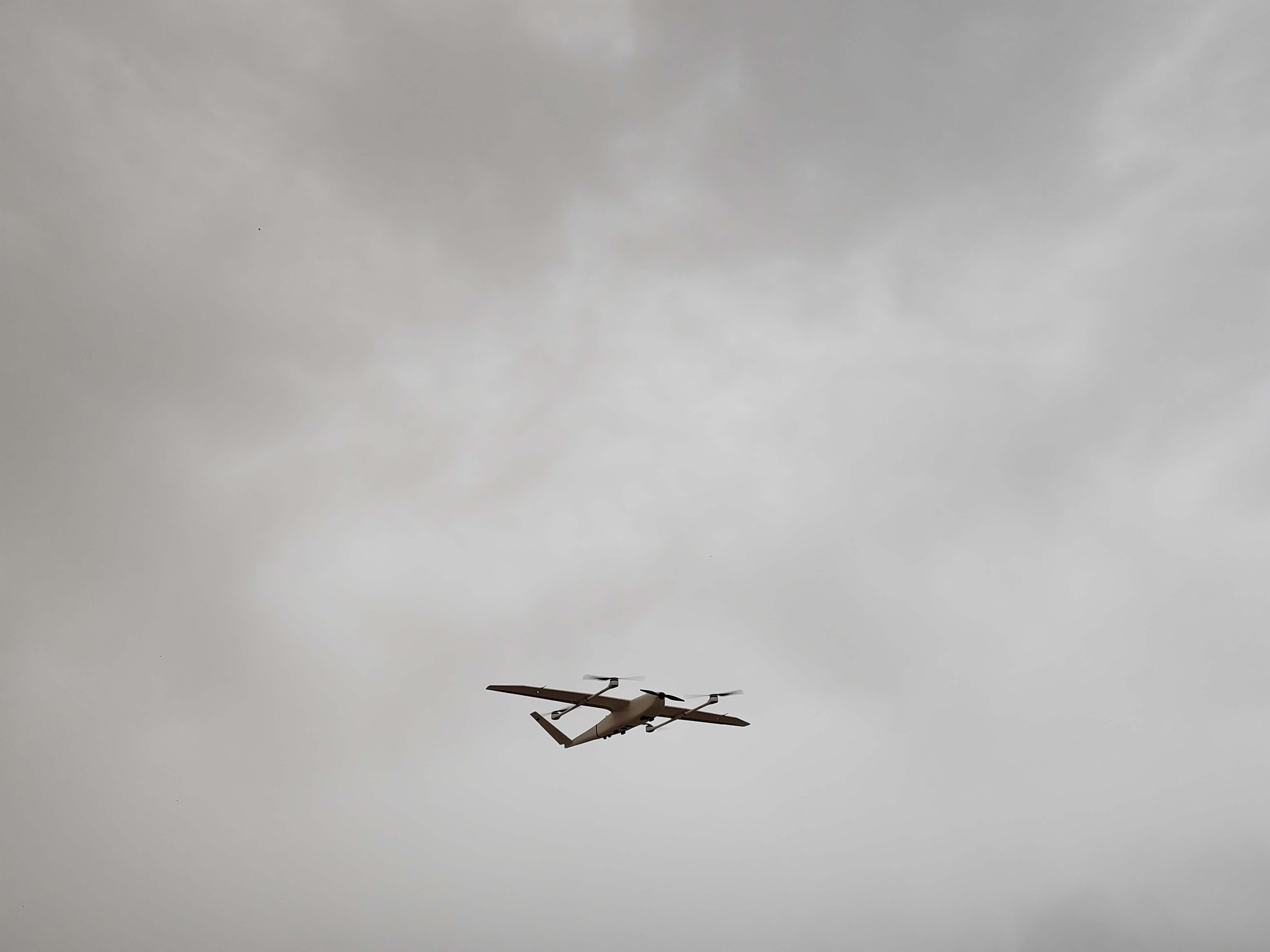

    Mapping Surveying 3400mm Wheelbase VTOL Fixed Wing LiDAR Drone

    VTOL Fixed Wing Drone Application for Mapping & Survey

    GS-S300 is a pure electric VTOL fixed wing drone, with a simple and smooth appearance design, which enables the drone to cruise at a speed of 90km/h and have an effective battery life of 2.5 hours. It can be easily equipped with LiDAR, professional-grade aerial survey camera and high-light sensor for efficient operations.


    Innovative product design, GS-S300 has a reliable redundancy safety control system.
    Intimate user experience, centimeter-level positioning accuracy, one-button take-off and landing, user-friendly operation process.
    Leading load design, rich load options, the mission cabin is placed at the center of gravity of the aircraft, and the
    plug-and-play of multiple loads is now available, fully satisfying the user's scenario-based application.


    Technical Parameter

    Wheelbase (mm)3400
    Fuselage Length (mm)2400
    Max Taking Off Weight (kg)30
    Max Payload Weight (kg) , without battery6
    Cruse Speed (km/h)70-100
    Power SupplyLithium Battery
    Max Flight Height (m)5500
    Max Flight Endurance (h)2.5
    Wind Resistance6 Class
    Data Transmission (km)30+
    Taking Off and LadingTK cm RTK Positioning, One-Key
    PositioningPPK (cm)
    Mission Range (km)60
    Cabin Size (For payload, mm)412*212*194

    Application for Mapping & Survey
