    Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

    Ask Lasest Price
    Brand Name : Geosun
    Model Number : GS-130X Mobile LiDAR Scanning System
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 30 SETS/Month
    Delivery Time : 5-7 works days
    • Product Details
    • Company Profile

    Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

    Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR


    Geosun gAirHawk Series GS-130X LiDAR Scanning System

    gAirHawk GS-130X is a kind of short range, compact LiDAR point cloud data acquisition system, integrated HESAI XT32-channel laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.


    Application of mobile LiDAR mapping solution GS-130X


    Free trial software of Mobile LiDAR Scanning System GS-130X

    The Guideline of LiDAR Usage and Reference.pdf

    Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
    Key Features of gAirHawk 5.0 Software
    1. Raw data: intelligently load
    2. Four default coordinates
    3. Point cloud Optimization
    4. Start and stop calculation
    Free trial test, achieve high precision


    Specficaiton of Mobile LiDAR Scanning System GS-130X

    Mobile LiDAR gAirHawk GS-130X
    Item NameSystem Parameters


    GS-130X

    Parameters

    Weight1.26 kg
    Measuring accuracyLess than 0.1m @120m
    Working temperature-20℃~+65℃
    Power range12 V- 24 V
    Consumption10 W
    Carrying PlatformDrone and Vehicle
    Storage64 GB storage, maximum support 128GB TF card

    Lidar Unit


    Measuring Range0.3m-120m@10% Reflectivity
    Laser class905nm Class1 (IEC 60825-1:2014)
    Channel32-Channel
    Range accuracy±1cm (typical Value)
    Scanning frequency10HZ, 20HZ
    dataDouble echo 640,000 Points/Sec
    FOV360°, adjustable
    Laser sensorHESAI XT32
    POS UnitUpdate frequency200HZ
    Heading accuracy0.040°
    Pitch accuracy0.015°
    Rolling accuracy0.015°
    Position accuracy≤0.05m
    GNSS signal typeGPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
    Pre-processing softwarePOS softwareOutput information: position, speed, attitude
    Point cloud softwareOutput point cloud data format: LAS format, custom TXT format
    Camera (built-in)FOV83 degree
    Effective Pixel26 Mega Pixel
    Focal length(mm)16

    Package of Mobile LiDAR Scanning System GS-130X

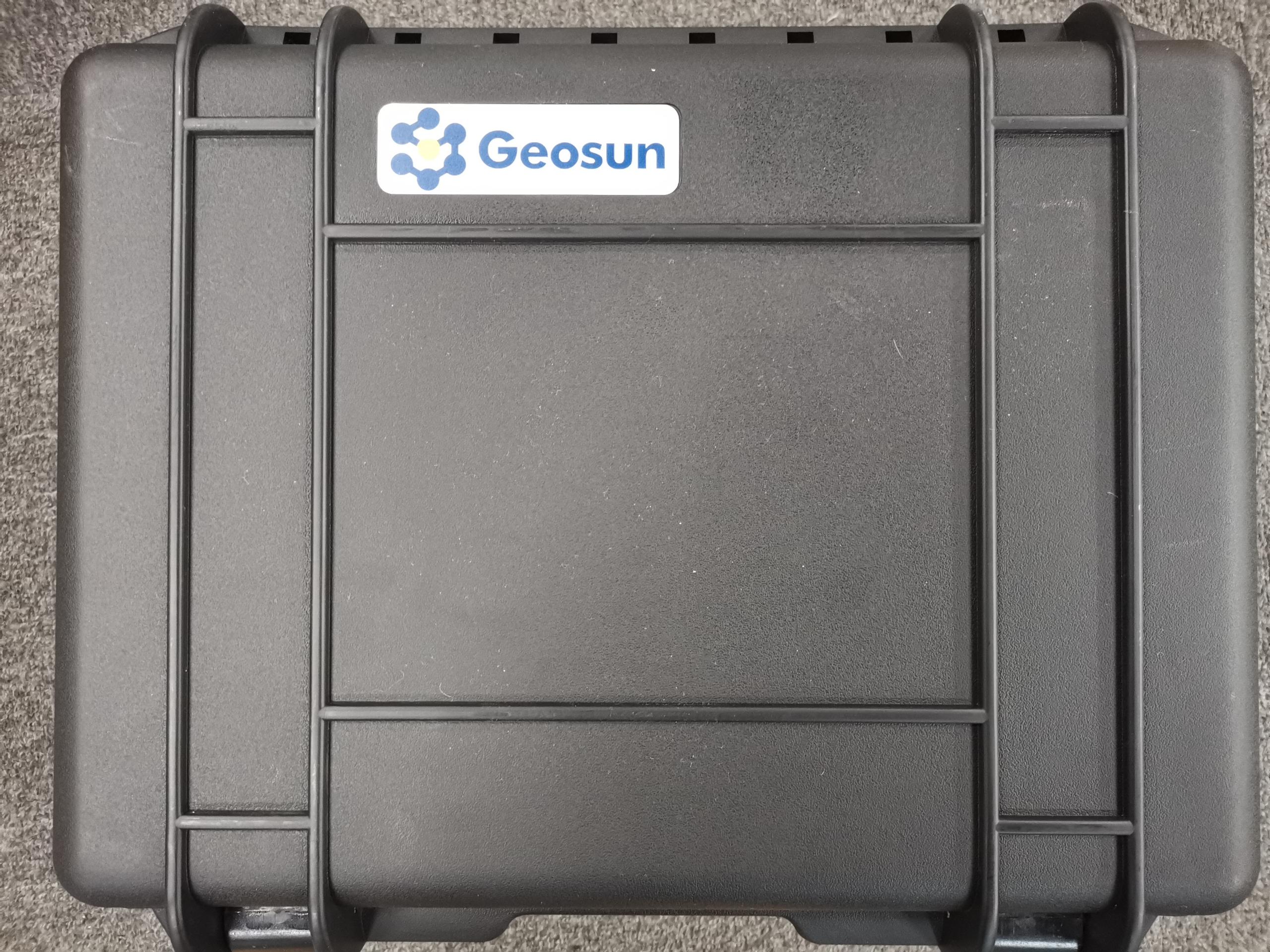

    Mobile LiDAR Scanning System GS-130X is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
