    Livox Tele 15 Laser Sensor Unmanned Vehicle Mobile LiDAR System

    gAirHawk GS-300T Mobile LIDAR SCANNING SYSTEM

    Mobile LiDAR Scanning System with Livox Tele-15 Laser Sensor

    gAirHawk GS-300T is a kind of Mid-range, compact LiDAR point cloud data acquisition system, integrated Livox Tele-15 laser sensor, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.


    Long Range

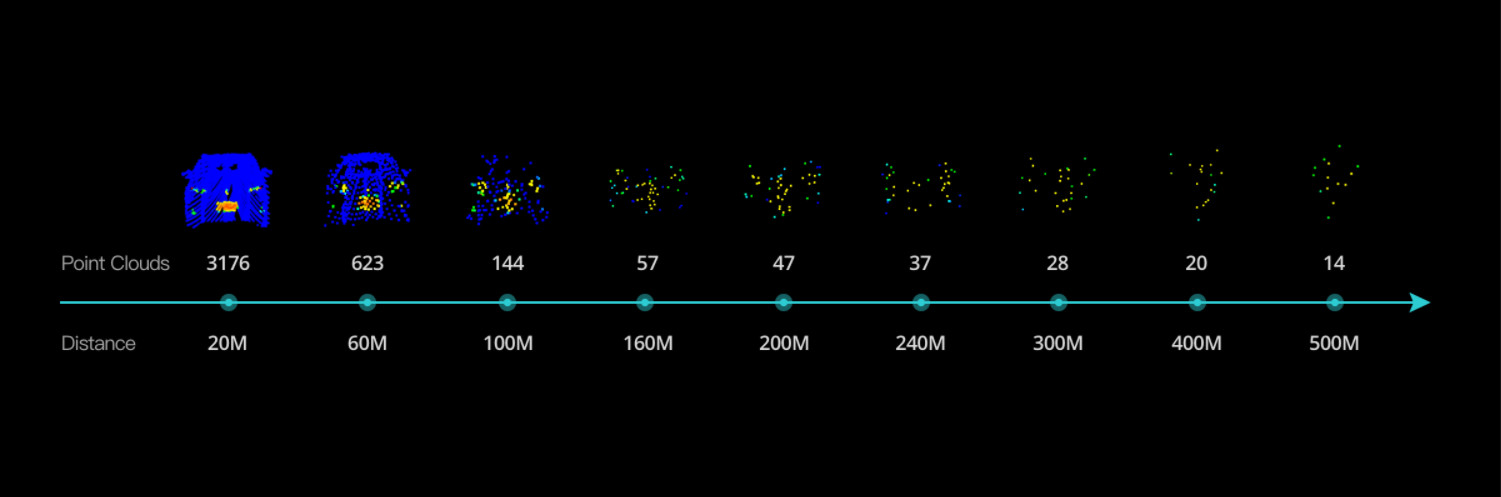

    The Tele-15 uses a large-diameter double-aspheric lens and solves common defocusing facula problems in long focus optical design, offering a detection range of up to 500m. Even when target object reflectivity is as low as 10%, it can still reach a detection range of up to 320m. Tele-15 supports customized firmware to increase the detectable range limit to 1000 meters.

    Livox Tele 15 Laser Sensor Unmanned Vehicle Mobile LiDAR System

    Livox Tele 15 Laser Sensor Unmanned Vehicle Mobile LiDAR System


    Specification

    gAirHawk GS-300T
    Item NameSystem Parameters


    GS-300T

    Parameters

    Weight2.15 kg
    Working temperature-20℃~55℃
    Power range12 V
    Consumption20 W
    CarrierUnmanned Vehicle
    Storage64 GB storage, maximum support 128GB TF card
    OD16 X 12.5 X 13.5 cm

    Lidar Unit


    Measuring Range320m@10% Reflectivity, 500m@50% Reflectivity,
    Laser class905nm Class1 (IEC 60825-1:2014)
    Laser line number128 beam
    Range Accuracy2 cm
    Pulse Frequency240 KHz
    Beam Divergence0.02° * 0.12°
    Data RateDouble echo 480,000 Points/Sec
    FOV14.5° * 16.2°
    Laser sensorLivox Tele-15
    POS UnitUpdate frequency200HZ
    Heading accuracy0.017°
    Pitch accuracy0.005°
    Rolling accuracy0.005°
    Position accuracy≤0.05m
    GNSS signal typeGPSL1/L2 GLONASSL1/L2 BDS B1/B2a/B3
    GNSS MotherboardOEM 719
    IMUAGS 303
    Pre-processing softwarePOS softwareOutput information: position, speed, attitude
    Point cloud softwareOutput point cloud data format: LAS format, custom TXT format

    Application for Unmanned Driving

    Livox Tele 15 Laser Sensor Unmanned Vehicle Mobile LiDAR System


    Package

    It is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
