    Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

    Ask Lasest Price
    Brand Name : Geosun
    Model Number : GS-130X
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union, Credit Card
    Supply Ability : 80 SETS/Month
    Delivery Time : 10-15 works days
    • Product Details
    • Company Profile

    Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

    Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov


    Geosun gAirHawk Sesries GS-130X LiDAR Scanning System

    LiDAR Scanning System GS-130X integrates a Hesai XT32 laser sensor and all built-in units to create a futuristic look for your diversified LiDAR solution services.Stands out with strong penetration and small beam divergence in same uav lidar scanning system class to deliver a better performance in any vegetation areas. GS-130X LiDAR Scanning System.pdf

    Specification of LiDAR Scanning System GS-130X

    LiDAR Scanning System gAirHawk GS-130X


    Item Name

    System Parameters


    GS-130X

    Parameters

    Weight

    1.26 kg

    Measuring accuracy

    Less than 10cm@120m

    Working temperature

    -20℃~+65℃

    Power range

    12 V- 24 V

    Consumption

    10W

    Carrying Platform

    Multi Rotor, VTOL and Vehicle

    Storage

    64 GB storage, maximum support 128GB TF card

    Lidar Unit


    Measuring Range

    0.3m-120m@10% Reflectivity

    Laser class

    905nm Class1 (IEC 60825-1:2014)

    Channel

    32-Channel

    Range accuracy

    ±1cm (typical Value)

    Scanning frequency

    10HZ, 20HZ

    data

    Double echo 1,280,000 Points/Sec

    FOV

    360°, adjustable

    Laser sensor

    HESAI XT32

    POS Unit

    Update frequency

    200HZ

    Heading accuracy

    0.017°

    Pitch accuracy

    0.005°

    Rolling accuracy

    0.005°

    Position accuracy

    ≤0.05m

    GNSS signal type

    GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

    Pre-processing software

    POS software

    Output information: position, speed, attitude

    Point cloud software

    Output point cloud data format: LAS format, custom TXT format

    Camera (built-in)

    FOV

    86 degree

    Effective Pixel

    26 Mega Pixel

    Focal length(mm)

    16

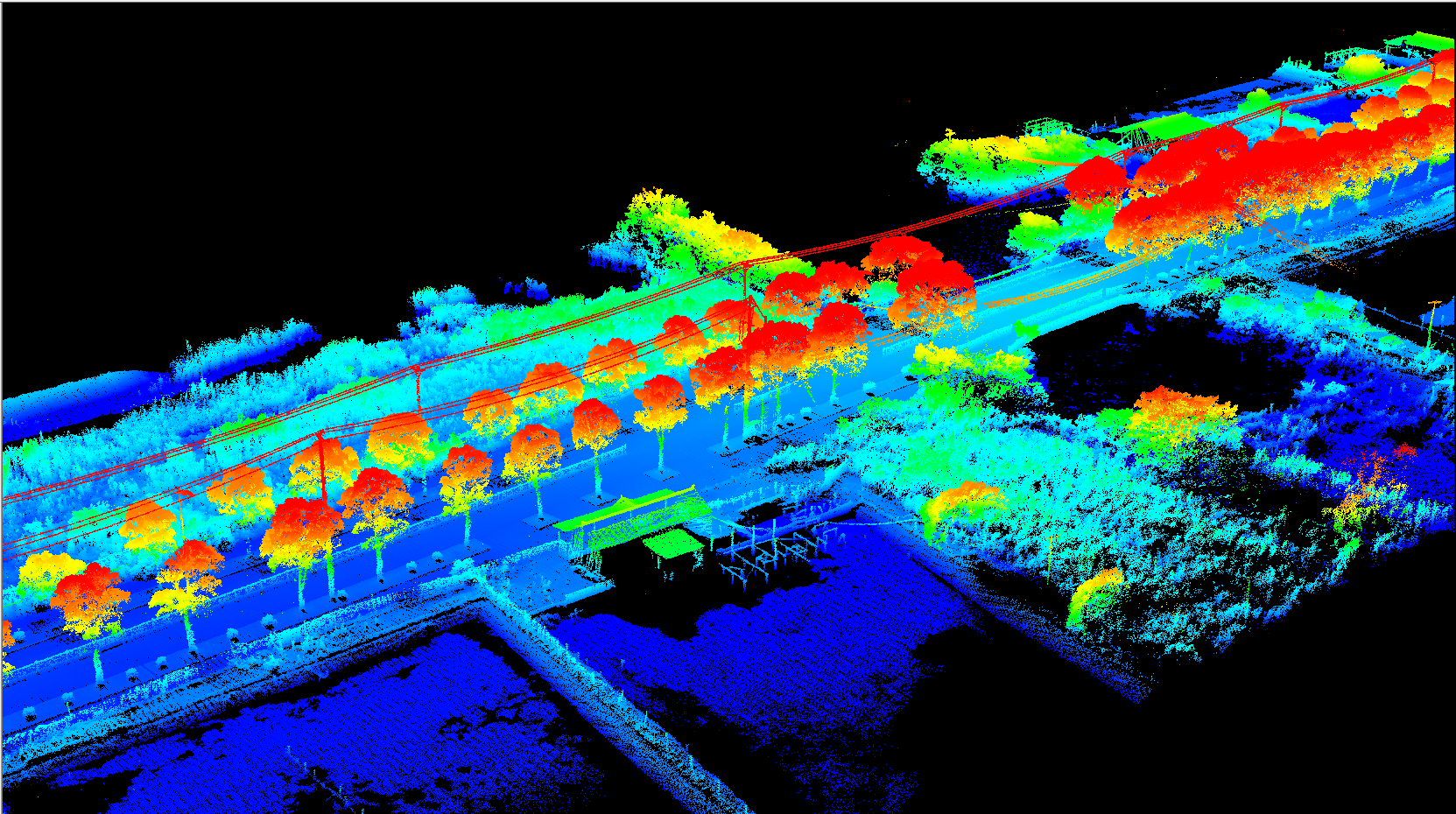

    Application of LiDAR Scanning System GS-130X


    Free Trial Software LiDAR Scanning System gAirHawk GS-130X

    Free trial test, achieve high precision

    The Guideline of LiDAR Usage and Reference.pdf

    Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
    Key Features of gAirHawk 5.0 Software
    1. Raw data: intelligently load
    2. Four default coordinates
    3. Point cloud Optimization
    4. Start and stop calculation


    Package of LiDAR Scanning System GS-130X

    LiDAR Scanning System GS-130X is packed by suit case with EVA material liner inside, then covered by hard carton box.

    The pacakge of uav LiDAR scanning system is suitable for air shipment and sea shipment.
