    Geosun gAirHawk Series GS-2000N LiDAR Scanning System 7 Echos Long Detection Aerial VTOL Mapping High Accuracy

    GS-2000N LiDAR Scanning System 7 Echos Long Detection Aerial VTOL Mapping High Accuracy


    Geosun gAirHawk Series GS-2000N LiDAR Scanning System

    gAirHawk GS-2000N is a kind of long range, compact LiDAR point cloud data acquisition system, integrated FT-1500H long range laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning. GS-2000N LiDAR Scanning System.pdf


    Specification of LiDAR Scanning System gAirHawk GS-2000N

    LiDAR scanning system gAirHawk GS-2000N


    Item Name

    System Parameters


    GS-2000N

    Parameters

    Weight

    3.2kg

    Working temperature

    -20℃~+60℃

    Power range

    12 V- 24 V

    Consumption

    65 W

    Carrying Platform

    6 Aixs Multi Rotor Drone,VTOL

    Storage

    64 GB storage, maximum support 128GB TF card

    Laser Unit


    Measuring Range

    2000m@80%

    Laser class

    1550 nm Class1 (IEC 60825-1:2014)

    Laser line number

    FT-1500H Single-Beam

    Measuring accuracy

    3mm@100m

    Max. range

    2000m

    Return

    Seven echos

    Scanning frequency

    50HZ-2000HZ

    Beam Divergence

    0.3mrad

    FOV

    75°-90°, adjustable

    POS Unit

    Update frequency

    200HZ

    Heading accuracy

    0.010°

    Pitch accuracy

    0.003°

    Rolling accuracy

    0.003°

    Position accuracy

    Horizontal: 0.01m, Vertical: 0.02m

    GNSS signal type

    GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

    IMU

    gSpin 410

    Pre-processing software

    POS software

    Output information: position, speed, attitude

    Point cloud software

    Output point cloud data format: LAS format, custom TXT format

    Camera (built-in)

    FOV

    48*33 Degree

    Effective Pixel

    45 MP (Full Frame Camera)

    focal Length(mm)

    16

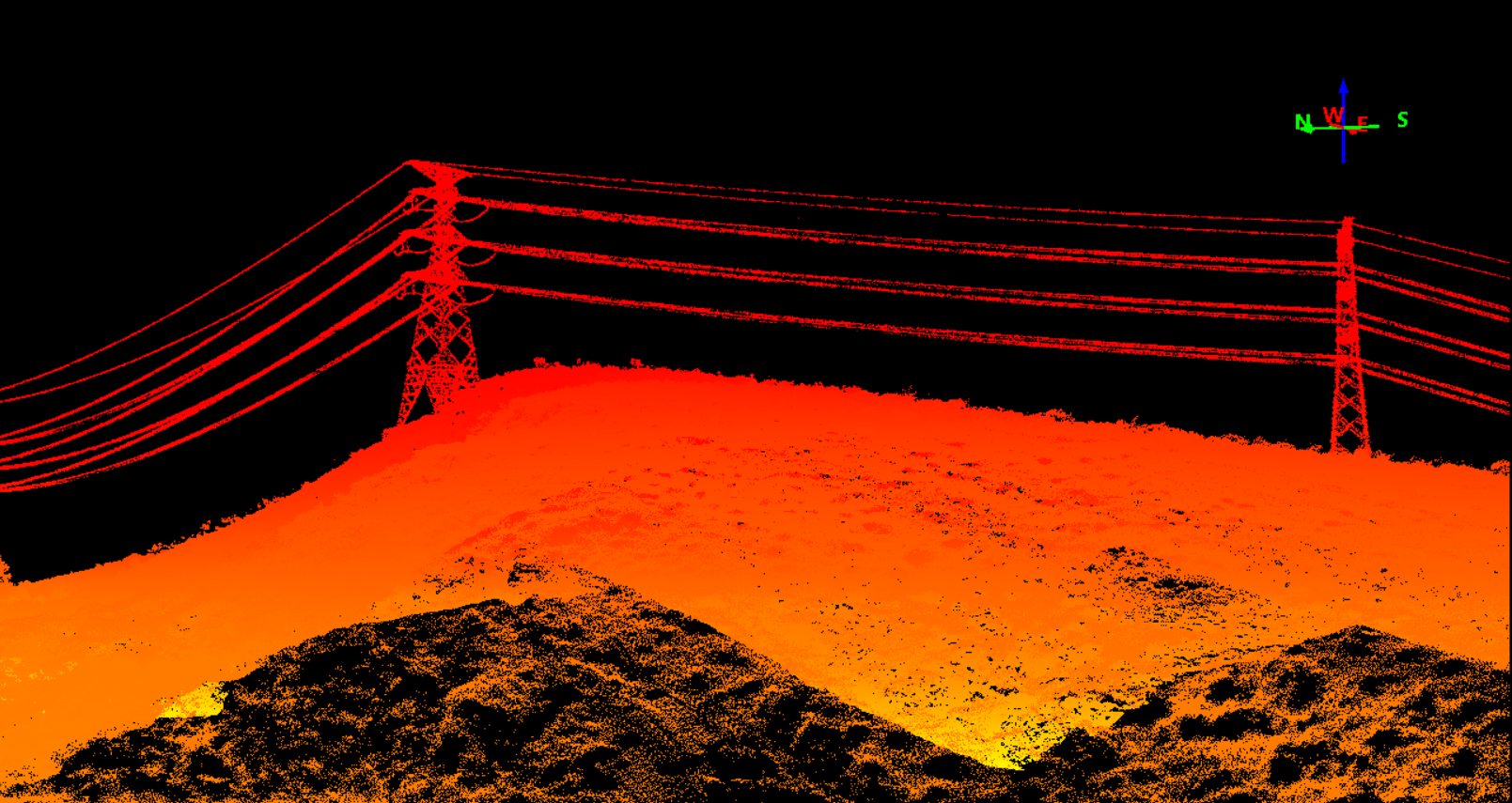

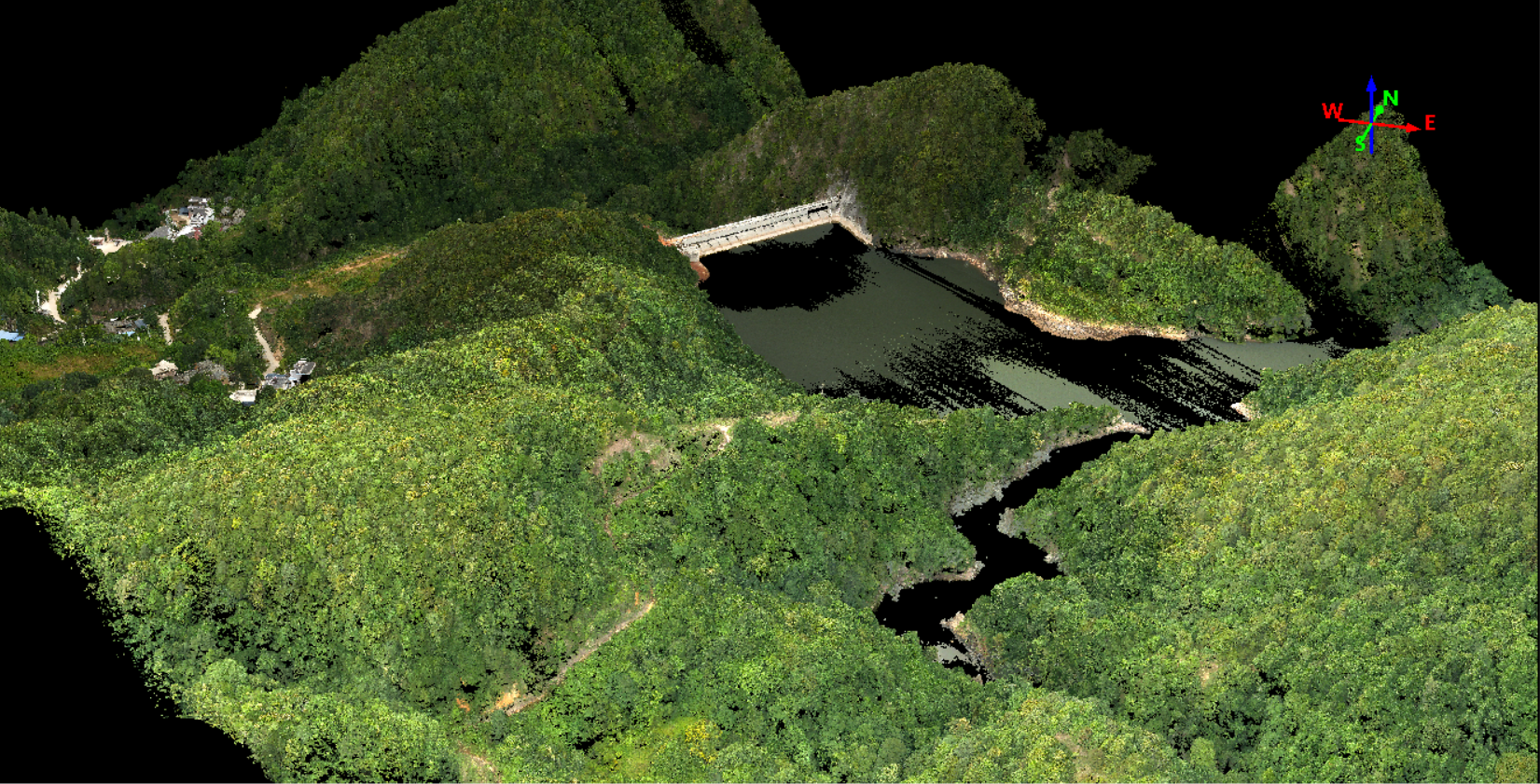

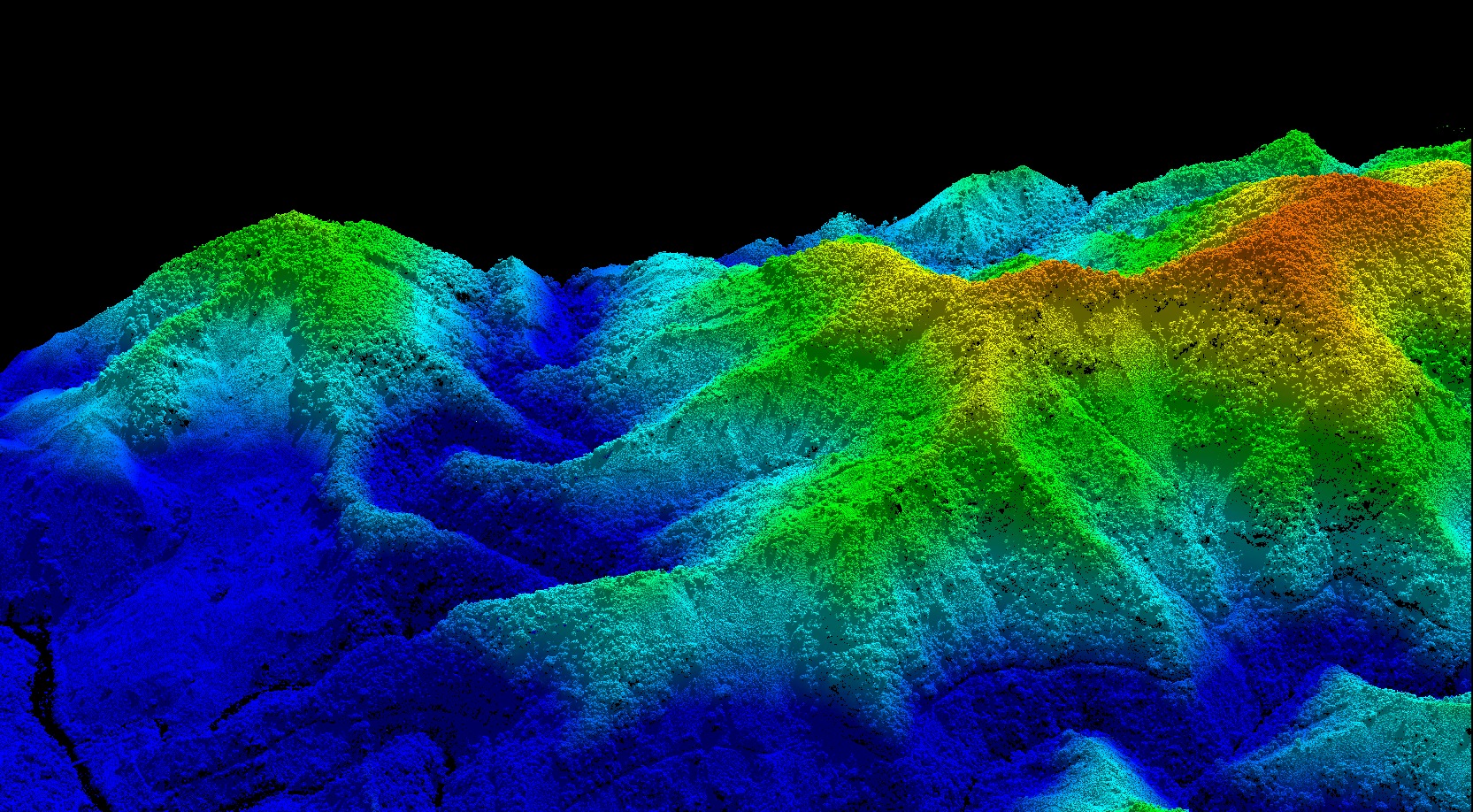

    Applications of LiDAR Scanning System gAirHawk GS-2000N


    Free Trial Software LiDAR Scanning System gAirHawk GS-2000N

    Free trial test, achieve high precision

    The Guideline of LiDAR Usage and Reference.pdf

    Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
    Key Features of gAirHawk 5.0 Software
    1. Raw data: intelligently load
    2. Four default coordinates
    3. Point cloud Optimization
    4. Start and stop calculation

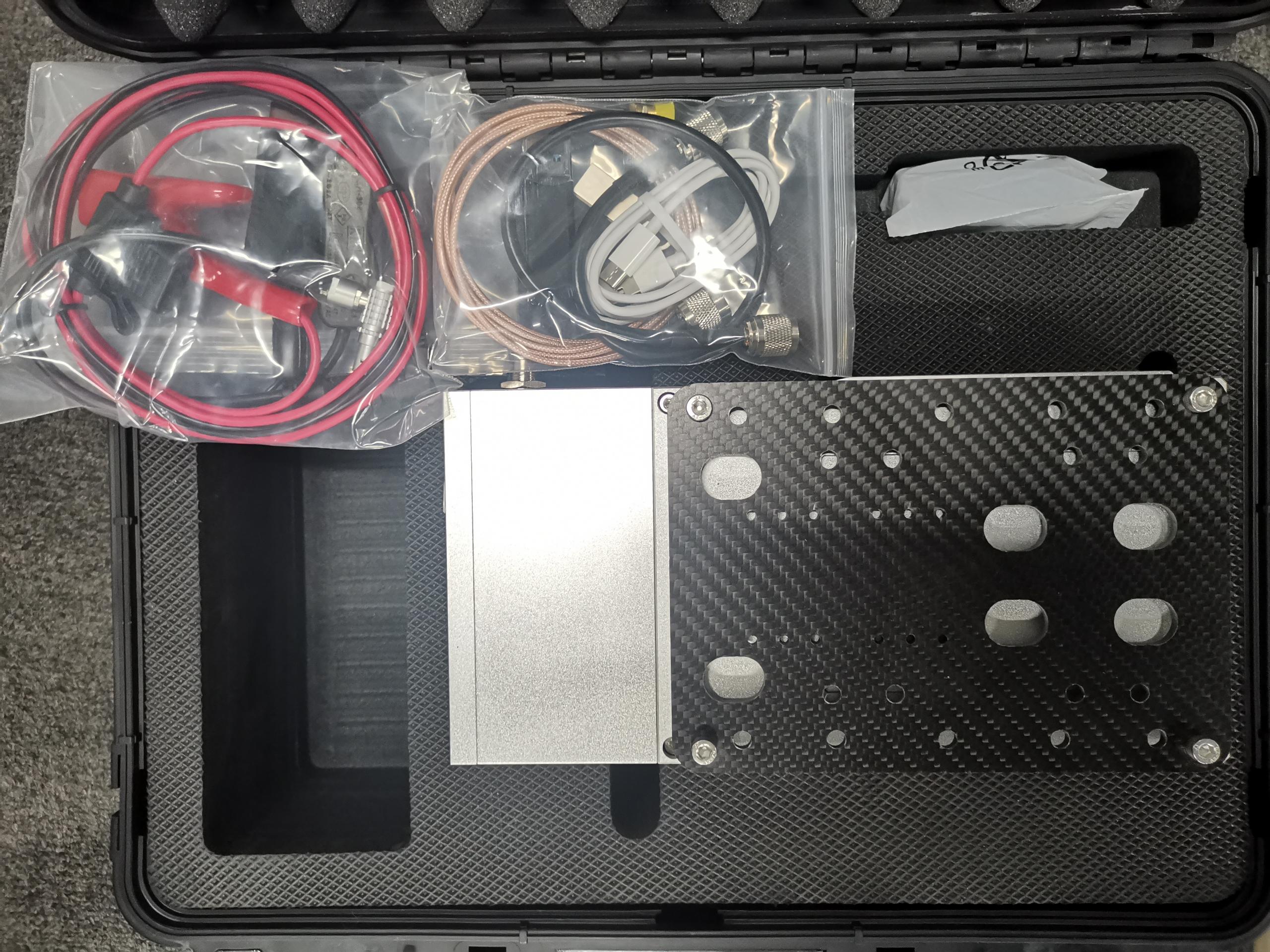

    Package of LiDAR Scanning System gAirHawk GS-2000N

    LiDAR Scanning System gAirHawk GS-2000N is packed by suit case with EVA material liner inside, then covered by hard carton box.

    The pacakge of uav LiDAR scanning system is suitable for air shipment and sea shipment.
