    Geosun gAirHawk Series GS-260H LiDAR Scanning System City Construction 3D Modeling High Accuracy Colored Point Cloud

    Geosun GS-260H UAV LiDAR Aerial Mapping Drone Surveying City Construction 3D Modeling


    Geosun gAirHawk LiDAR Scanning System GS-260H
    gAirHawk GS-260X is a kind of middle-range, compact LiDAR point cloud data acquisition system, integrated HESAI 300m laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

    For more specification please check here: GS-260H LiDAR Scanning System.pdf


    Applications of LiDAR Scanning System GS-260H

    The customer requested 3d modeling for building and choosed GS-260H to take this task.

    As buildings height is 90m, we setted the drone flight height 130m.

    After processing data, the customer were very satisfied with complete point cloud and root mean square(4.6cm).

    Meanwhile, GS-260H did another flight surveying for the park near buildings.

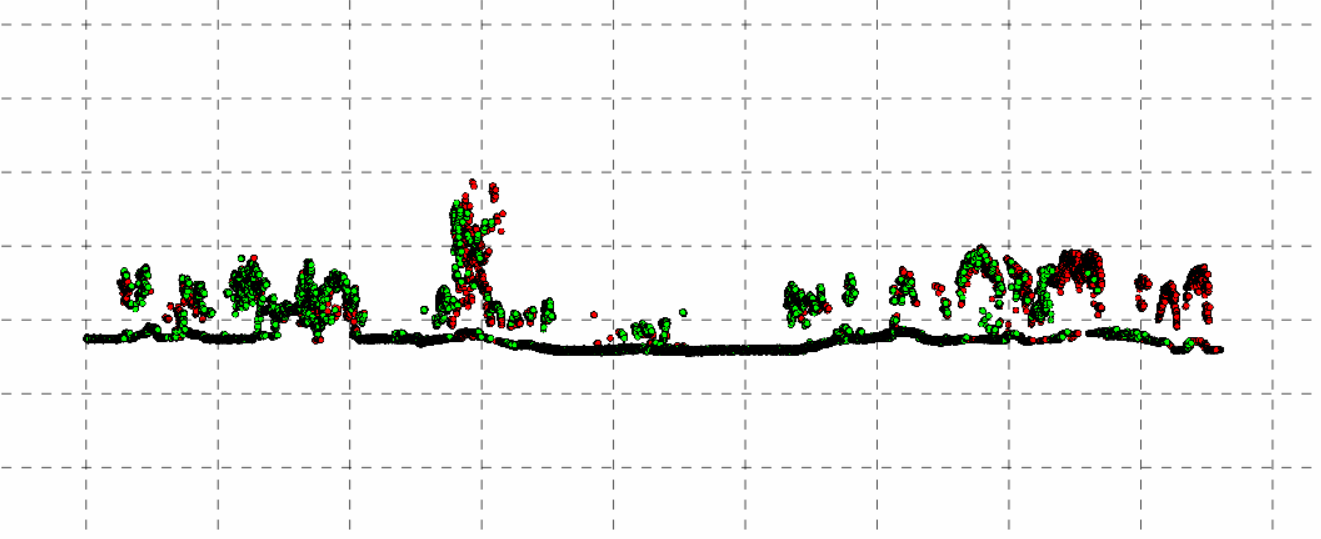

    Continual point cloud under trees was very obvious and the output colored point cloud accurately represented the real view.


    Free Trial Software LiDAR Scanning System gAirHawk GS-260H

    Free trial test, achieve high precision

    The Guideline of LiDAR Usage and Reference.pdf

    Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
    Key Features of gAirHawk 5.0 Software
    1. Raw data: intelligently load
    2. Four default coordinates
    3. Point cloud Optimization
    4. Start and stop calculation


    Specification of LiDAR Scanning System GS-260H

    LiDAR Scanning System gAirHawk GS-260H


    Item Name

    System Parameters

    GS-260X

    Parameters

    Weight

    1.15 kg

    Measuring accuracy

    Within 10cm@100M

    Working temperature

    -20℃~+65℃

    Power range

    12 V- 24 V

    Consumption

    10 W

    Carrying Platform

    DJI M300, M600 PRO and Other brand

    Storage

    64 GB storage, maximum support 128GB TF card

    Lidar Unit


    Measuring Range

    80m@10% Reflectivity (Max 300m)

    Laser class

    905nm Class1 (IEC 60825-1:2014)

    Channel

    32-Channel

    Range accuracy

    ±1cm (typical Value)

    Scanning frequency

    10HZ, 20HZ

    data

    Trible echo 1,920,000 Points/Sec

    FOV

    360°, adjustable

    Laser sensor

    HESAI Pandar XTM2X

    POS Unit

    Update frequency

    200HZ

    Heading accuracy

    0.015°

    Pitch accuracy

    0.04°

    Rolling accuracy

    0.04°

    Position accuracy

    ≤0.05m

    GNSS signal type

    GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

    Pre-processing software

    POS software

    Output information: position, speed, attitude

    Point cloud software

    Output point cloud data format: LAS format, custom TXT format

    Camera

    (built-in)

    FOV

    83 Degree

    Effective Pixel

    26 Mega Pixel

    Trigger event

    Distance or Time trigger


    Package of LiDAR Scanning System GS-260H

    LiDAR Scanning System GS-260H is packed by suit case with EVA material liner inside, then covered by hard carton box.

    It is suitable for air shipment and sea shipment.
