    Geosun gAirHawk Series GS-100V LiDAR Scanning System HESAI XT16 Laser Sensor Built-In Camera High Precision Aerial Scan

    LiDAR Scanning System GS-100V HESAI XT16 Laser Sensor Built-In Camera High Precision Aerial Scan


    Geosun gAirHawk LiDAR Scanning System GS-100V

    gAirHawk GS-100V is a kind of short-range, compact LiDAR point cloud data acquisition system, integrated HESAI XT16 laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.


    Specification of LiDAR Scanning System gAirHawk GS-100V

    LiDAR Scanning System gAirHawk GS-100V


    Item Name

    System Parameters


    GS-100V

    Parameters

    Weight

    1.4kg

    Measuring accuracy

    Less than 0.1m @100m

    Working temperature

    -20℃~55℃

    Power range

    12V- 24 V

    Consumption

    20W

    Carrying Platform

    Drone and Vehicle

    Storage

    64GB storage, maximum support 128GB TF card

    Lidar Unit


    Measuring Range

    80m@10% Reflectivity, max range 120m

    Laser class

    905nm Class1 (IEC 60825-1:2014)

    Channel

    16-Channel

    Range accuracy

    ±1cm (typical Value)

    Scanning frequency

    10HZ, 20HZ

    data

    Double echo 640,000 Points/Sec

    FOV

    360°, adjustable

    Laser sensor

    HESAI XT16

    POS Unit

    Update frequency

    200HZ

    Heading accuracy

    0.040°

    Pitch accuracy

    0.015°

    Rolling accuracy

    0.015°

    Position accuracy

    ≤0.05m

    GNSS signal type

    GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

    Pre-processing software

    POS software

    Output information: position, speed, attitude

    Point cloud software

    Output point cloud data format: LAS format, custom TXT format

    Camera (built-in)

    Trigger Event

    Distance or Time trigger

    Effective Pixel

    26 Mega Pixel & 83 Degree FOV

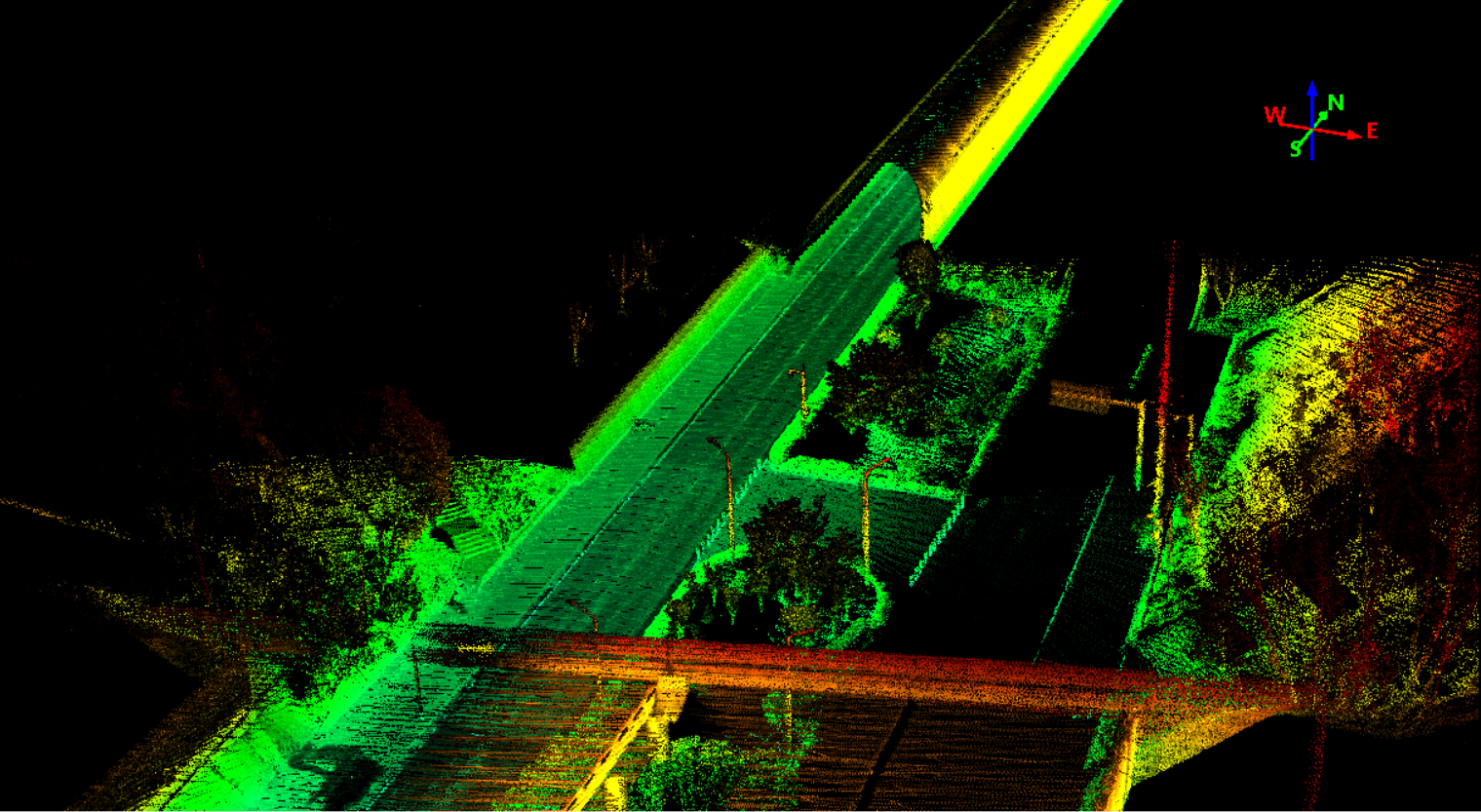

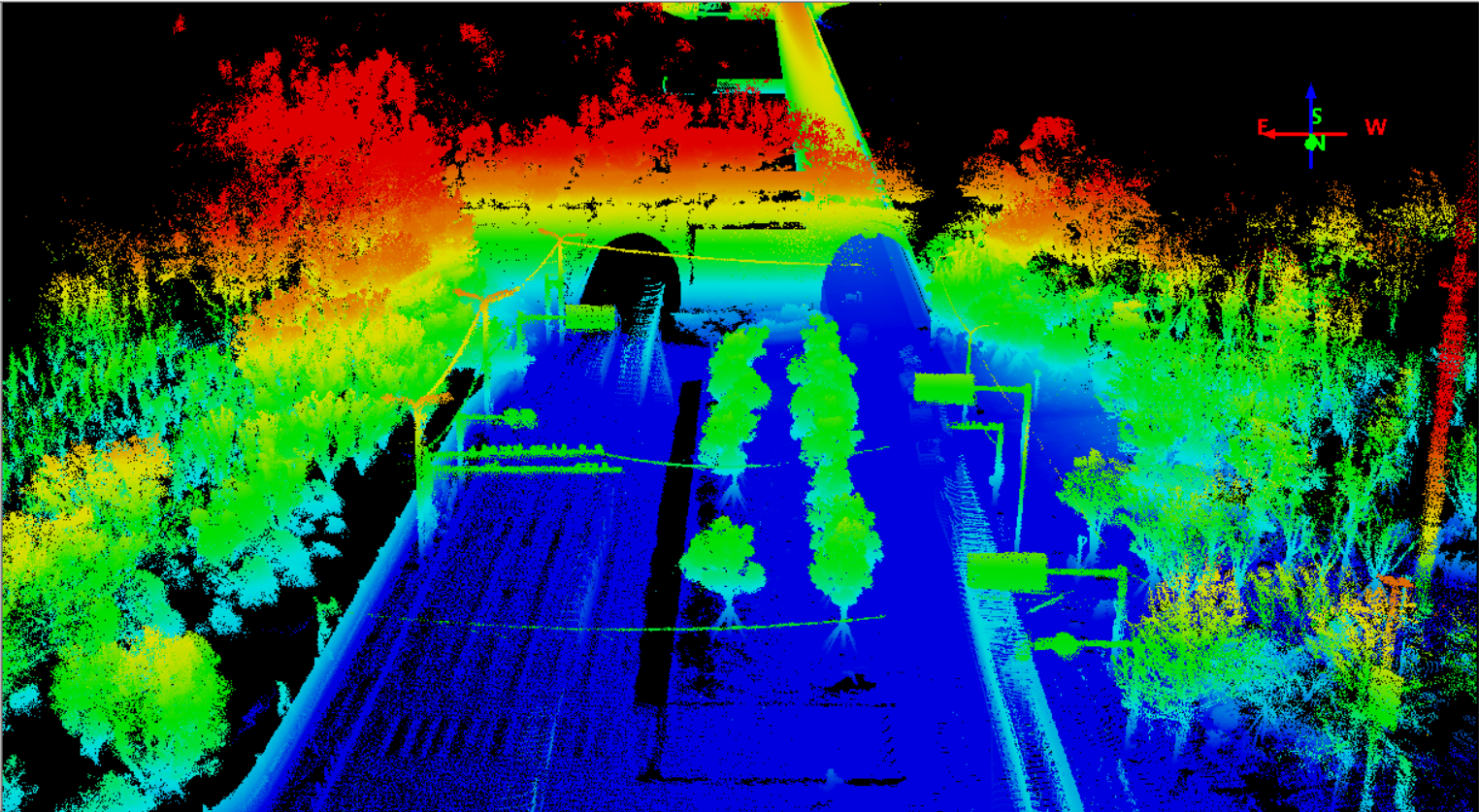

    Application of LiDAR Scanning System gAirHawk GS-100V


    Free Trial Software UAV LiDAR Scanning System gAirHawk GS-100V

    Free trial test, achieve high precision

    The Guideline of LiDAR Usage and Reference.pdf

    Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
    Key Features of gAirHawk 5.0 Software
    1. Raw data: intelligently load
    2. Four default coordinates
    3. Point cloud Optimization
    4. Start and stop calculation


    Package of LiDAR Scanning System gAirHawk GS-100V

    LiDAR Scanning System gAirHawk GS-100V packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
