Handheld LiDAR Scanning System Mobile Mapping Solution Geosun
GS-100G Building 3D Data Collection
Geosun gFireEye Series GS-100G Handheld LiDAR Scanning System
GS-100G is a kind of handheld LiDAR scanning system independently
developed by Geosun company.It adopts a simple design with a small
body, so as to be light to carry, easy to operate and flexible to
install.With a variety of sensors, it can quickly capture a wide
range of scene data, support multi-platform and multi-mode
operation, and combine GNSS, INS, LiDAR and SLAM algorithms to
achieve seamless survey of indoor and outdoor scenes. SLAM Serial
Solution.pdf
Geosun gFireEye Series GS-100G Handheld LiDAR Scanning System
Specification
System Parameter | |
Point Cloud Accuracy | 5cm@100m without control point |
Weight | 2.15 kg(with battery) |
Battery Parameter | 11600 mAh |
Storage | Build-in Flash memory 128GB, |
Voltage Range | 12V-18V |
Working Temperature | -20℃-55℃ |
Carrying Platform | Hand-held, Multi-rotor and Vehicle |
System Consumption | 25W |
| POS Unit | |
| Model | gSpin 210 |
| Update Frequency | 200Hz |
| GNSS Signal Type | GPS L1/L2/L5, GLONASS L1/L2 |
| Position Accuracy | Horizonal 0.02m Elevation 0.03m |
| Pitch Accuracy | 0.015° |
| Roll Accuracy | 0.015° |
| Heading Accuracy | 0.040° |
| Laser Unit | |
| Detection Range | 80m@10%,Max Range 120m |
| Range Accuracy | ±1.5cm |
| Channel | 16 |
| Horizontal FOV | 360° |
| Vertical FOV | 270° |
| Points Rates | Single echo 320,000 Points/Sec, |
| Camera Parameter | |
| Resolution | 2*20 MP |
| FOV | Horizontal 270° |
| Shooting Mode | Isochronous |
Geosun gFireEye Series GS-100G SLAM LiDAR Scanning System
Application
A high quality LiDAR data has been collected by GS-100G handheld
lidar, the whole industry park completely present and even the name
of park can be seen very clearly.
Geosun gFireEye Series GS-100G Handheld LiDAR Scanning System
Package

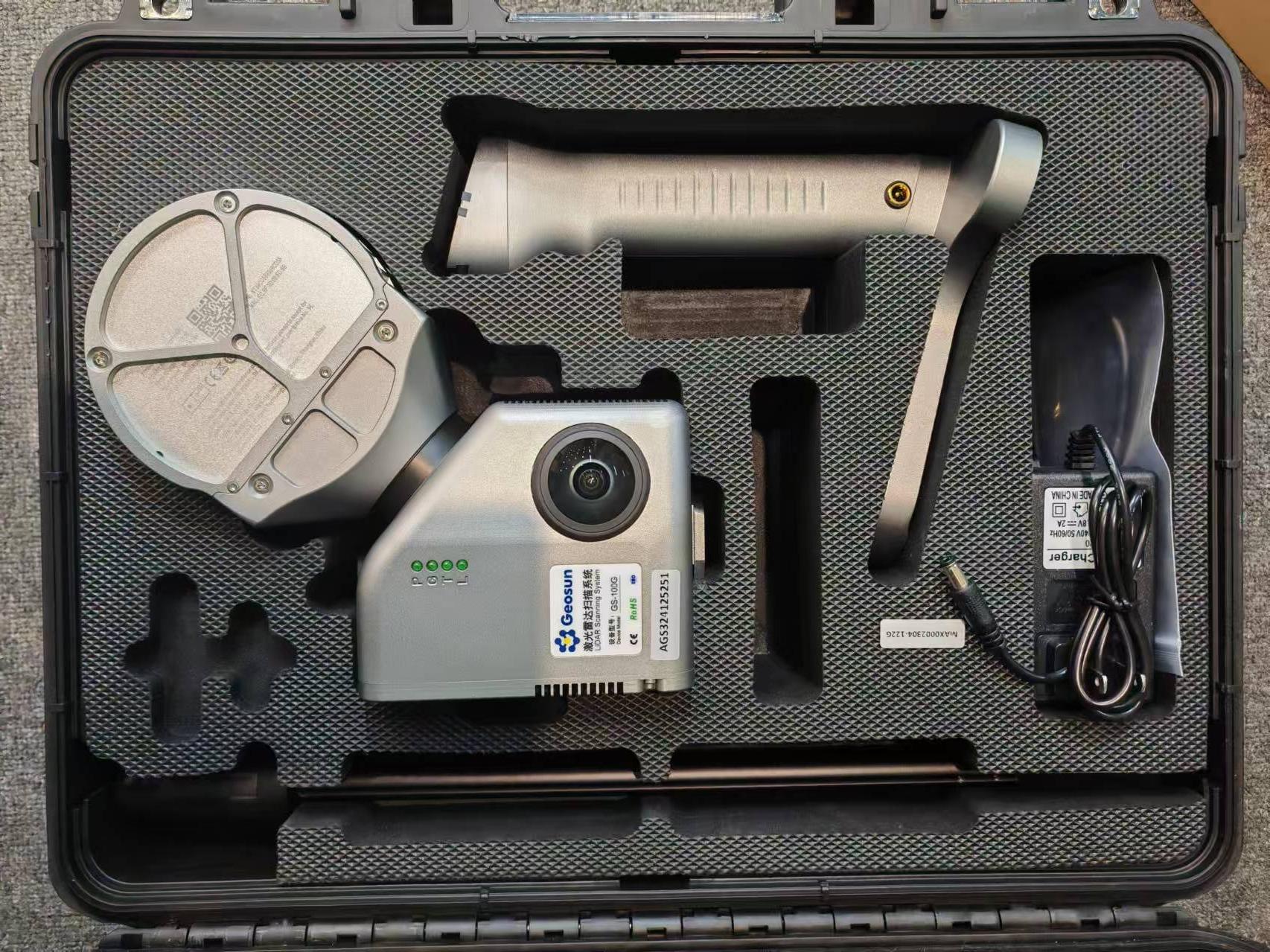

Geosun gFireEye Series GS-100G Handheld LiDAR is packed by suit
case with EVA material liner inside, then covered by hard carton
box. It is suitable for air shipment and sea shipment.
|
|
